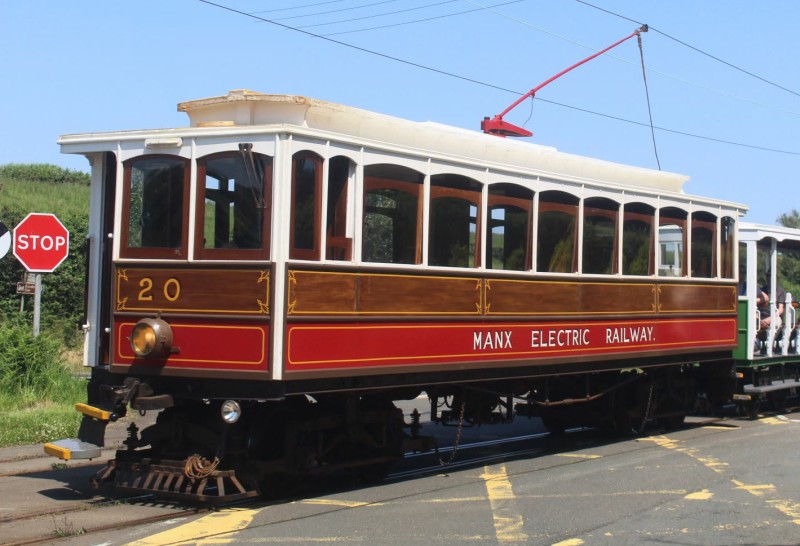

Technical – Car No.20 (1899)

Conductors:
1899-Current: Trolley Pole

Trucks:
1899-November 1904: Milnes Series 3 (E.C.C Frames)
November 1904-Winter 2013: Brill 27Cx (ex-Car No.28)
Spring 2013-Current Brill 27Cx (Ramsey end ex-Car No.22)

Traction Motors:
1899-November 1904: 4 x E.C.C (Electric Car Company, Wolverhampton) 20hp
November 1904-Current: 4 x SEHC (Societe l’Electricite et l’Hydraulique) 25hp

Controllers:
1899-1936: General Electric K11 units
1936-Current: General Electric K12 units

Braking:
1899-November 1904: Handbrake Only
November 1904-Current: Air Braking
1932 – Fitted with Trailer Air Cocks

Application Valves:
1899-November 1904: None
November 1904-1947: Christensen
1947-Current: Westinghouse No.7

Motor Compressor:
1899-November 1904: None
November 1904-1961: Christensen
1961-Current: Maley and Taunton (ex-Glasgow Corporation Transport)

Automatic Governor:
1899-November 1904: None
November 1904-1947: Christensen
1947-Current: Westinghouse

Switchgear:
1899-November 1904: None
November 1904-1961: Christensen
1961-Current: Maley and Taunton (ex-Glasgow Corporation Transport)

Cylinder:
1899-November 1904: None
November 1904-1947: Christensen
1947-Current: Westinghouse

Interior:
1899-Current: Fitted with Central Partition
Spring 2001-Current: Fitted with Saloon Heaters

Seating Style:
1899-1932: Transverse Reversible 2+1 wooden seats
1932-1967: Transverse Reversible 2+1 wooden seats fitted with Upholstered Seat Cushions
1967-Current: Transverse Reversible 2+1 wooden seats fitted with Dunlopillo Seat Cushions

Seating Capacity:

1899-Current: 48

Exterior:
1930s-1940s: Fitted with additional headlights at both ends
1939-51: Side Window-Bars removed
1967/69-1979 – Fitted with additional headlights at both ends
November 2012-January 2013: Fitted with ‘Santa Tram’ embellishments
February 2013-Current: Fitted with ‘120 Years of the M.E.R’ vinyls on cab ends

Overhauls/Works Attention:
1932
1944
Summer 1997 – Spring 1999
Autumn/Winter 2002-Spring 2003
Summer 2003-Summer 2004
Winter 2009/10-Spring 2010
Winter 2015/16: Trucks, motors

Liveries/Repaints:

1899-1900: Brown (Lined Yellow)/Cream (Lined Red) with crest on middle panel and Cream ‘Douglas Laxey & Ramsey Electric Tramway’ lettering and Cream Numbering on middle cab panels

1900-Winter 1904/05: Brown (Lined Yellow)/Cream (Lined Red) with crest on middle panel and Cream ‘Douglas Laxey & Ramsey Electric Railway’ lettering and Cream Numbering on middle cab panels

Winter 1904/05-1942: Red (Bordered White and Lined Cream)/White/Dark Brown Teak (Lined Yellow)/with crest on middle panel, White ‘The Manx Electric Railway Co. Ltd.’ lettering and Yellow Numbering

1942-Spring 1958: Red/White/Dark Brown Teak with Brown M.E.R Lettering on middle panel and Brown Numbering

Spring 1958-Spring 1961: Green/White with M.E.R Crest on middle panel, White ‘Manx Electric Railway.’ Lettering on lower panel and White Numbering

Spring 1961-Spring 1962: Red/White/Dark Brown Teak (Lined Cream) with M.E.R Crest on middle panel, White ‘Manx Electric Railway.’ Lettering on lower panel and Cream Numbering

Spring 1962-Winter 1977: Red (Lined White)/White/Dark Brown Teak (Lined Cream) with White ‘Manx Electric Railway.’ Lettering on lower panel and Cream Numbering

Spring 1978-1986: Red (Lined Yellow)/White/Dark Brown Teak (Lined Yellow) with Yellow ‘Isle of Man Railways’ lettering on lower panel and Yellow Numbering

1986-Winter 1992: Red (Lined Yellow)/White/Dark Brown Teak (Lined Yellow) with White ‘Manx Electric Railway’ lettering on lower panel and Yellow Numbering (lettering simply changed)

Spring 1993-Summer 1997: Red (Bordered White)/White/Dark Brown Teak (Lined White) with White ‘The Manx Electric Railway Co. Ltd.’ lettering on lower panel, and White Numbering

Summer 1999-Spring 2003: Red (Bordered White)/White/Light Brown Teak (Lined Yellow) with White ‘The Manx Electric Railway Co. Ltd.’ lettering on lower panel, and White Numbering

Spring 2003-Spring 2004: Red (Bordered White)/White/Teak with White ‘Manx Electric Railway’ lettering on lower panel, and White Numbering

Spring 2004-Spring 2006: Red/White/Teak with White ‘M.E.R’ lettering on lower panel, and White Numbering

Spring 2006-Spring 2010: Red (Bordered White)/White/Light Brown Teak (Lined Yellow) with White ‘M.E.R’ lettering on lower panel, and White Numbering

Spring 2010-Winter 2013: Red (Bordered White)/White/Light Brown Teak (Lined Yellow) with White ‘M.E.R.’ lettering on lower panel, and White Numbering – Painted at Laxey Car Shed

Spring 2014-Current: Red (Bordered White)/White/Dark Brown Teak (Lined Yellow) with White ‘M.E.R.’ lettering on lower panel, and White Numbering

Additional Information:
